This is preliminary documentation and is subject to change.

The mapping trigger editor

This topic will help you discover the mapping trigger editor.

  Tip

A mapping trigger will be fired for each event involving the relevant data object raised inside all the application workflows.

Setting Triggers

To set a trigger on a mapping object:

  1. Select the object in the mapping explorer.

  2. Select the Extract or the Load tab.

  3. Add a trigger using one of the following actions:

    • Double click an icon in the bottom bar.

    • Click an icon in the bottom bar and click the add button in the top toolbar.

    • Right click an icon in the bottom bar and click the add this trigger menu item.

  4. Click the edit-delegate 16x 16 button to display the parameters editor when needed.

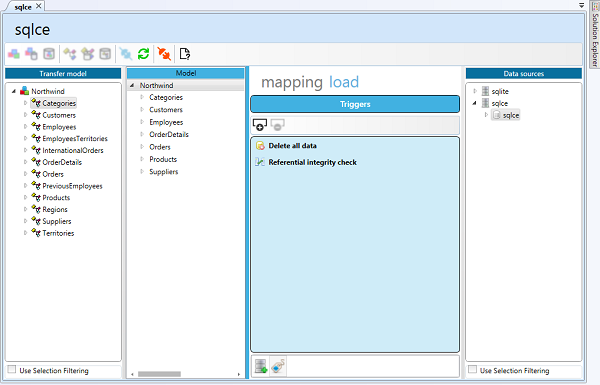

triggermappingeditor
